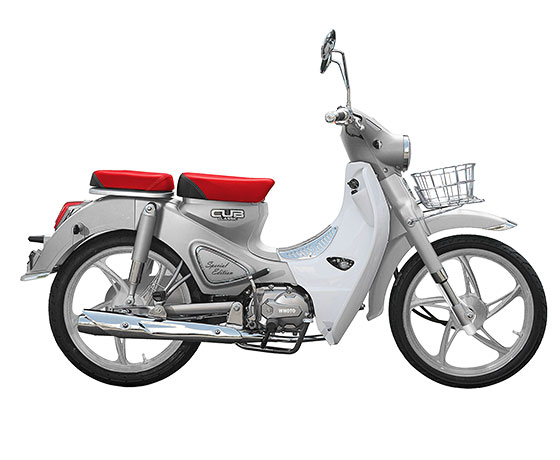

CUB CLASSIC 110 SE
COLORS AVAILABLE
CUB CLASSIC 110 SE
OVERVIEW
WMoto Cub Classic 110 is a moped bike with 1 Cylinder, 4 Stroke, SOHC, 109.2 CC engine and 4-Speed Transmission. The bike produces 8.1 hp of power at 7500 RPM and 8.0 Nm of torque at 5500 RPM.
WMoto Cub Classic available in four color option – Black, Red, Green and included silver color for Special Edition model. It also comes with 4 Liters fuel capacity supplied to the engine by Carburetor. This moped bike also brings USD Forks for the front suspension and Shock Absorber on the rear suspension.
ENGINE
- TYPE 1-Cylinder, 4 Stroke, SOHC, Air Cooled
- BORE X STROKE 50 X 55.6mm
- DISPLACEMENT 109.2cc
- MAX POWER 6.0 kW @ 7500 rpm
- MAX TORQUE 8.0 Nm @ 5500 rpm
- COMPRESSION RATIO 9.0:1
- FUEL SYSTEM Carburetor
- TRANSMISSION 4 Speed, Constant Mesh, Rotary
- LUBRICATION SYSTEM Pressure splash
- CLUTCH TYPE Wet Multiple Plate
- FINAL DRIVE TYPE Chain
- STARTER Kick & Electric starter
- IGNITION C.D.I
CHASSIS
- FRAME TYPE Arch bar truck
- FRONT SUSPENSION USD Forks
- REAR SUSPENSION Shock Absorber
- FRONT BRAKE Drum
- REAR BRAKE Drum
- FRONT TYRE 70/90-17, Tube
- REAR TYRE 80/90-15, Tube
- DRY WEIGHT (kg) 100
- SEAT HEIGHT (mm) 755
- OVERALL LENGTH (mm) 1,900
- OVERALL WIDTH (mm) 680
- WHEELBASE (mm) 1235
- GROUND CLEARANCE (mm) 135
- FUEL CAPACITY (Liter) 4
- BATTERY 12V-4Ah
