In-Line Twin Cylinder / 8V / DOHC / Liquid-Cooled Engine. Top Power and Torque Performance in 400cc. Superior power output, fine-tuned, distinctive torque and power curve performance. Honeycomb Shape Dual-Pipe Exhaust Well-tuned, deep roaring exhaust sound. 41mm Upside-Down Front Fork Suspension. USD front fork with double triple clamp enhances the rigidity of the suspension system, showing premium hard braking support and stability.
Hotline :
604-2250028

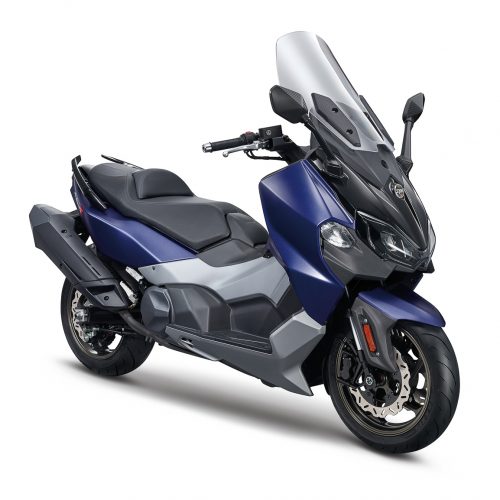

MAXSYM TL 500
MAXSYM TL 500
OVERVIEW

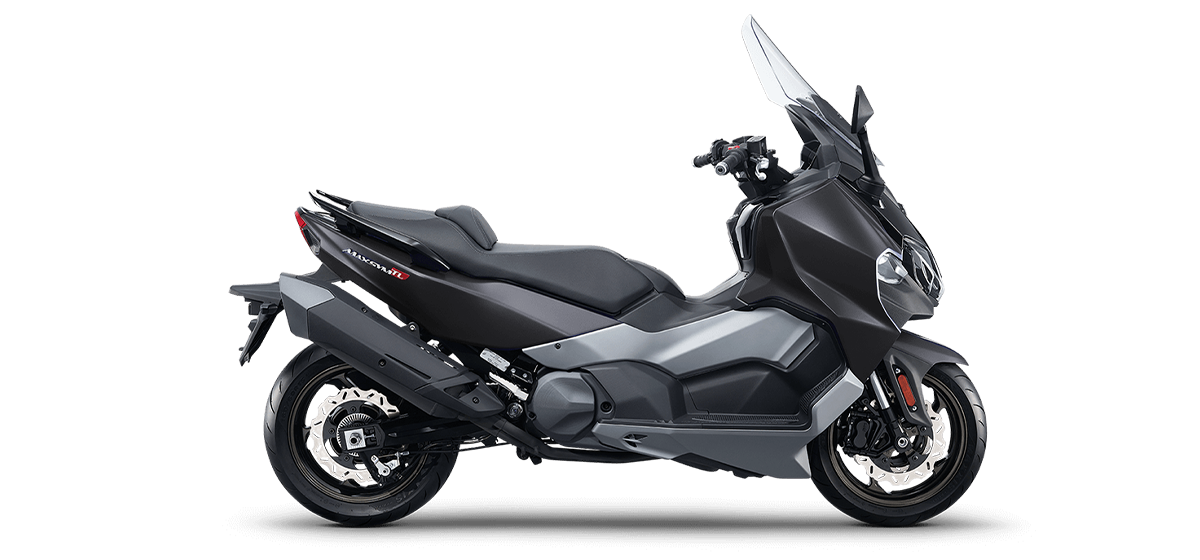

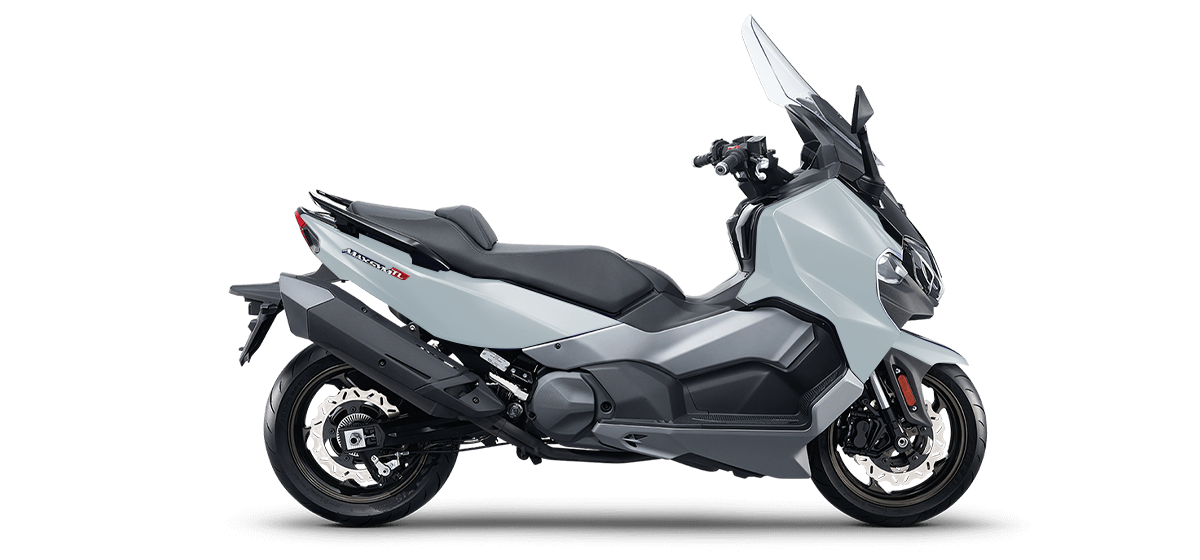

COLORS AVAILABLE
ENGINE
- TYPE – Twin-cylinder, Liquid-cooled 4-stroke, DOHC, 8-valve
- BORE X STROKE – Ø 65 x 70 mm
- DISPLACEMENT – 465 cc
- MAX POWER – 30.0 kW / 6,750rpm
- MAX TORQUE – 42.5 Nm / 6,250rpm
- FUEL SYSTEM – E.F.I
- TRANSMISSION – C.V.T. / auto speed change
- STARTER – Electric
CHASIS
- FRONT SUSPENSION – Upside-down FR Form
- REAR SUSPENSION – Rear mono shock with single-sided multi-link suspension
- FRONT BRAKE – Dual radial 4-piston caliper Double disc 275 mm + ABS
- REAR BRAKE – Disc 275 mm + ABS
- FRONT TYRE – 120 / 70-15
- REAR TYRE – 160 / 60-15
- SEAT HEIGHT (MM) – 795
- OVERALL LENGTH (MM) – 2215
- OVERALL WIDTH (MM) – 801
- WHEELBASE (MM) – 1543
- FUEL CAPACITY (LITER) – 12.5
