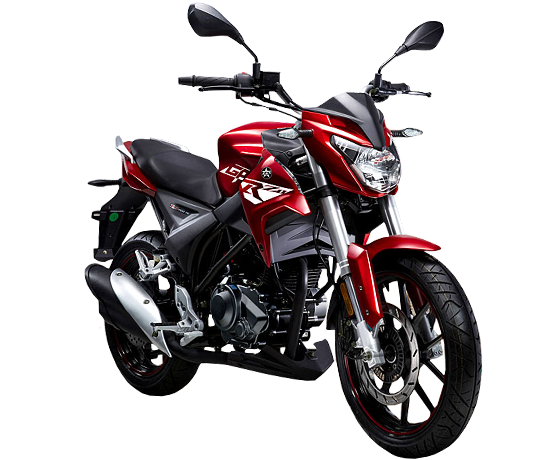

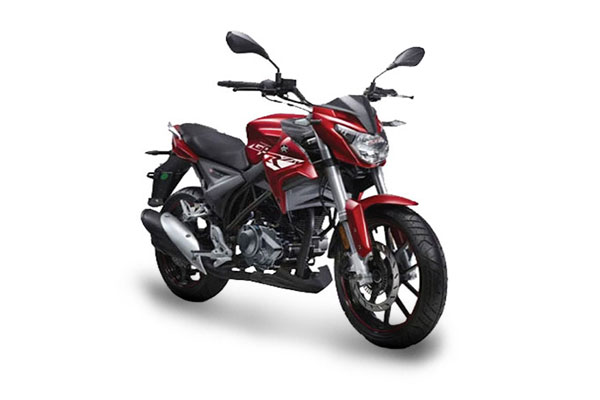

The KTNS ZII is designed for the street naked bike with aggressive style to strike the road, coming with 1-Cylinder, 4-Strokes, 4-Valve, Water-Cooled, Camshaft Upward with Balance Shaft 204 cc mill. Power is claimed to be 14.7 hp at 7,500 rpm and torque is 16 Nm at 5,500 rpm with power getting to the ground 6 Speed gear Shift with Manual Wet Multi-Plate and chain final drive.
Hotline :
604-2250028
Z II 200
ENGINE
| Engine Type : | 1-Cylinder, 4-Strokes, 4-Valve, Water-Cooled, Camshaft Upward with Balance Shaft |
| Displacement (ml) : | 204 |
| Maximum Power (kw/rpm) : | 11/7500 |
| Maximum Torque (N.m/rpm) : | 16/5500 |
| Starter System : | Electric |
| Ignition : | C.D.I |
| Bore x Stroke : | 67 x 57.8 |
CHASSIS
| L x W x H (mm) : | 2050 x 775 x 1110 |
| Wheelbase (mm) : | 1300 |
| Ground Clearance (mm) : | 170 |
| Dry Mass (kg) : | 150 |
| Fuel Capacity (L) : | 15 litre |
| Fuel Efficiency (L/100 km) : | 2.5 |
| Maximum Speed (kw/h) : | 110 |
| Compression Ratio : | 9.5:1 |
| Type of Transmission : | 6 Speedgear Shift |
| Clutch : | Manual Wet Multi-Plate |
| Brake (F/R) : | Disc / Disc |
| Tyre (F/R) : | 110/70-17 / 130/70-17 |
