WAVE ALPHA 110

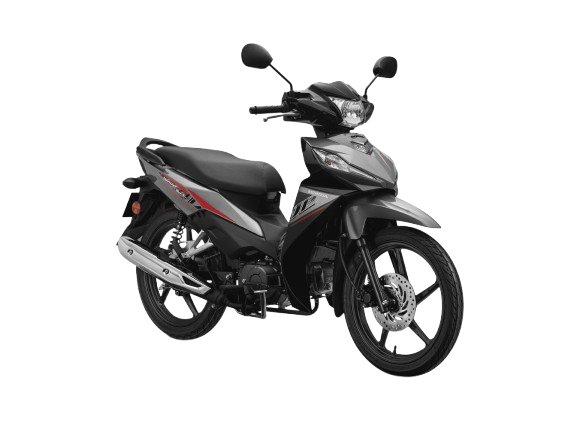

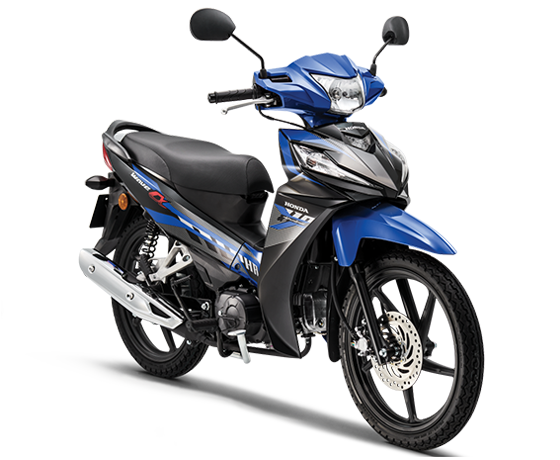

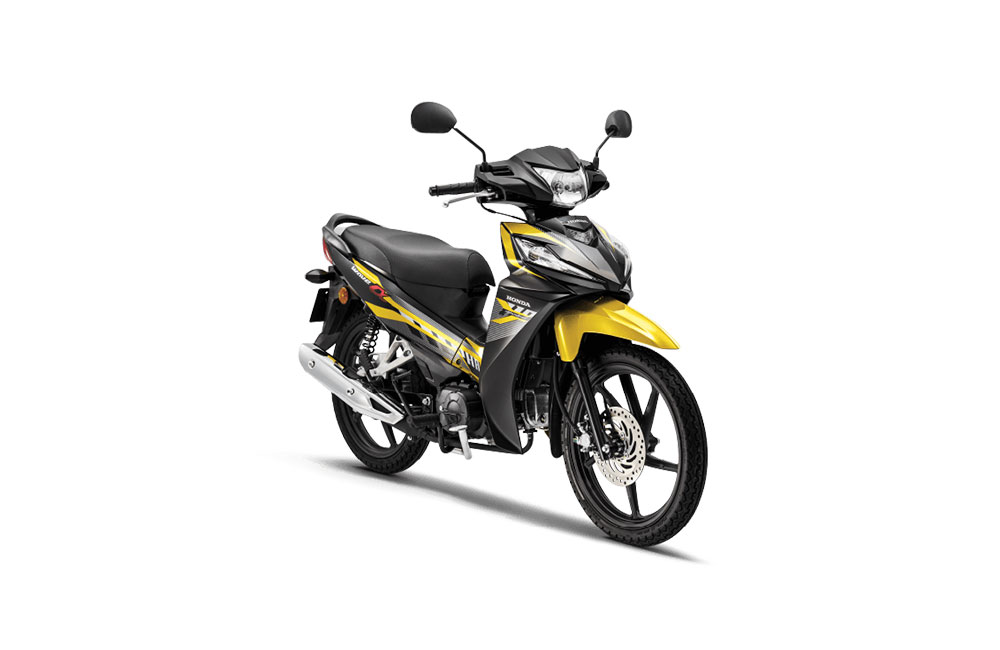

COLORS AVAILABLE
WAVE ALPHA 110
OVERVIEW
Engineered with practicality and accessibility in mind, the Wave Alpha embodies our dream of mass mobility for Malaysians. Carrying a a 109.1 cc, air-cooled, single-cylinder mill with four-speed gear box, the Wave Alpha produces 8.3 hp at 7,500 rpm and 8.59 Nm of torque at 5,500 rpm. Designed as a fuel efficient commuter motorcycle, the Wave Alpha has a 3.7-litre fuel tank, small under seat storage compartment and either electric or kick starting.
ENGINE
| Model | Spoke & Cast Type |
| Type | Single Cylinder, Air Cooled, SOHC 4-Stroke 2 Valve |
| Displacement | 109.17 |
| Bore X Stroke | 50.000mm x 55.597mm |
| Compression Ratio | 9.0 : 1 |
| Max. Power | 6.14 kW @ 7,500rpm |
| Max Torque | 8.42 N.m @ 5,500rpm |
| Engine Oil Capacity | 1.0 ℓ (New) 0.8 ℓ (Exchange) |
FUEL SYSTEM
| Model | Spoke & Cast Type |
| Type | Carburetor |
| Fuel Tank Capacity | 3.7 ℓ |
ELECTRICAL SYSTEM
| Model | Spoke & Cast Type |
| Starter | Electric Auto / Manual start |
| Battery Capacity | 3 A.h |
| ACG Output | 12 V |
DRIVETRAIN
| Model | Spoke & Cast Type |
| Clutch Type | Automatic Centrifugal Clutch |
| Transmission Type | Manual / 4 Speed – Constant Mesh |
CHASIS
| Model | Spoke Type | Cast Type |
| Frame Type | Back Bone | Back Bone |
| Dimensions (L x W x H) | 1,937 mm x 703 mm x 1,089 mm | 1,937 mm x 703 mm x 1,089 mm |
| Wheelbase | 1,227 mm | 1,227 mm |
| Seat Height | 766 mm | 766 mm |
| Ground Clearance | 132 mm | 132 mm |
| Curb Weight | 97 kg | 99kg |
SUSPENSION, WHEELS & BRAKE
| Model | View | Spoke type | Cast Type |
| Suspension Type | Front Rear | Telescopic Twin | Telescopic Twin |
| Rim Size | Front Rear | 17 M/C x MT1.40 17 M/C x MT1.60 | 17 M/C x MT1.85 17 M/C x MT1.85 |
| Tyres | Front Rear | 70 / 90 -17 M/C 38P (With Tube) 80 / 90 -17 M/C 50P (With Tube) | 80 / 90 -17 M/C 50P (Tubeless) 80 / 90 -17 M/C 50P (Tubeless) |
| Brakes | Front Rear | Trailing Drum Trailing Drum | Hydraulic Disk Hydraulic Disk |
