DASH 125 FI (2 DISC)

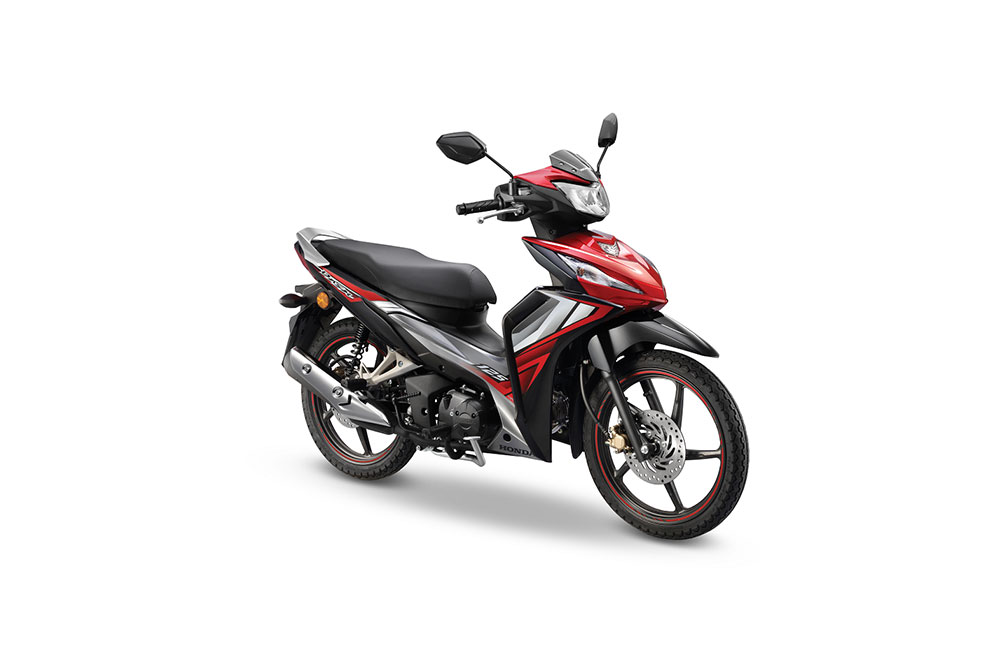

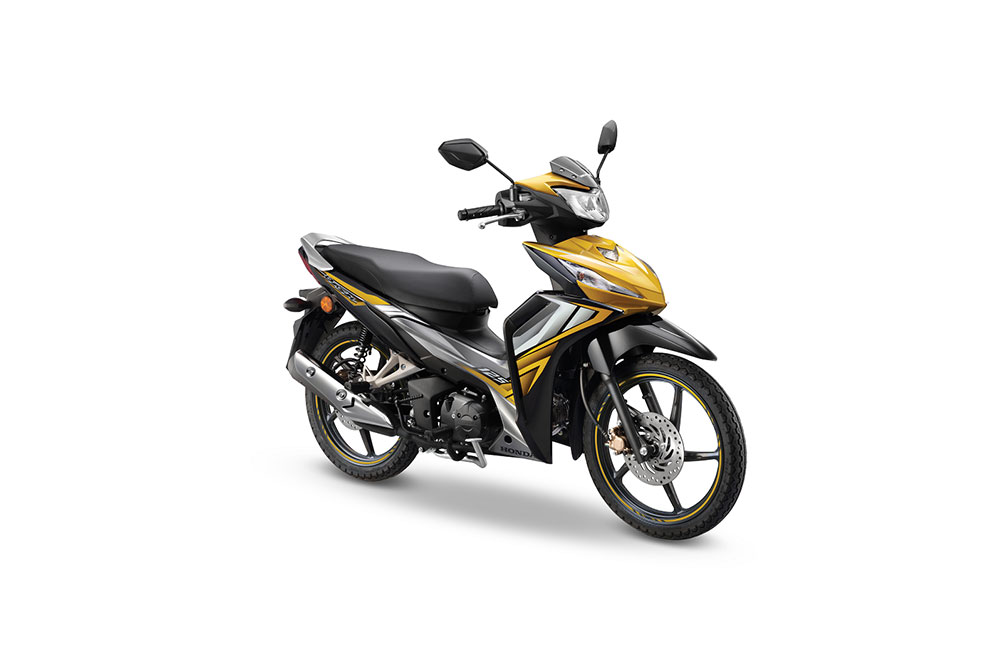

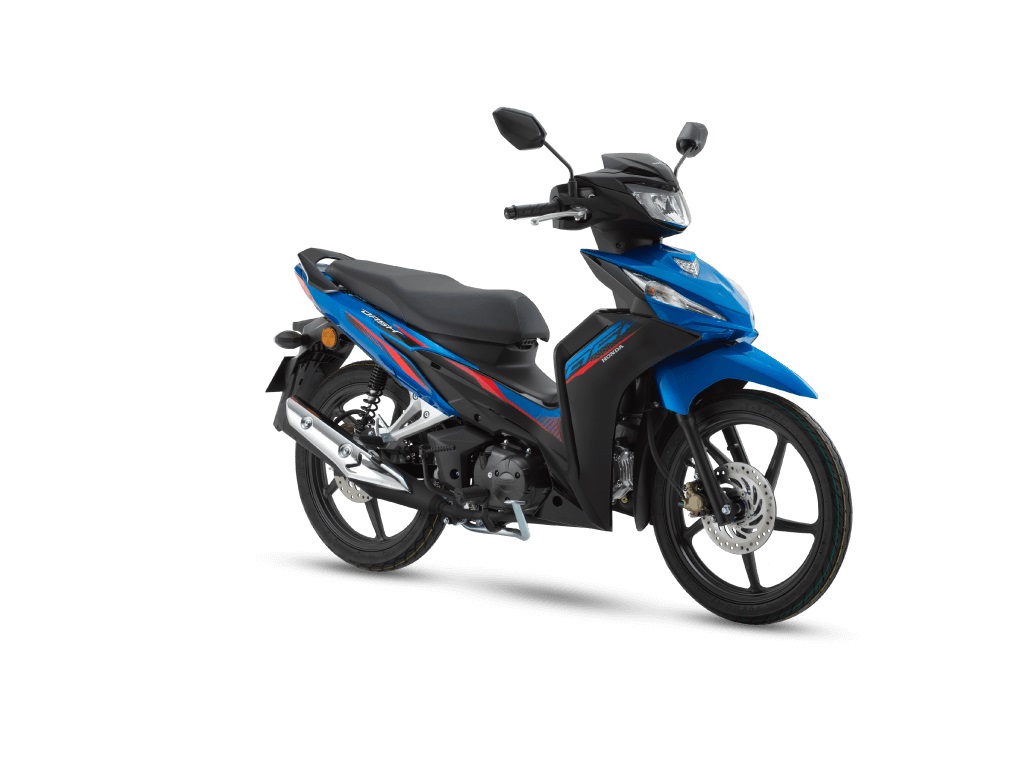

COLORS AVAILABLE
DASH 125 FI (2 DISC)
OVERVIEW
Refined 125cc engine. High fuel efficiency. Spirited performance. Dash through the city in style and confidence with the Dash125. Displacement from the previous generation 109 cc Dash FI, the Dash 125 produces 9.85 hp at 8,000 rpm and 9.54 Nm of torque from its 124.89 cc single-cylinder, air-cooled, two-valve engine. A four-speed automatic gearbox drives a chain to the rear wheel and fuelling is by Honda’s PGM-FI.
Suspension is with conventional telescopic forks and twin shock absorbers adjustable for pre-load. Depending on model, the Dash 125 uses a hydraulic front disc brake and either a drum rear brake or hydraulic disc rear brake.
ENGINE
| Model | Single Disk & Double Disk |
| Type | Single Cylinder, Air Cooled, SOHC 4-Stroke 2 Valve |
| Displacement | 124.89 cm³ |
| Bore X Stroke | 52.400 mm X 57.913 mm |
| Compression Ratio | 9.3 : 1 |
| Max. Power | 7.35 N.m @ 8,000rpm |
| Max Torque | 9.54 N.m @ 6,500rpm |
| Engine Oil Capacity | 0.9 ℓ (New) 0.7 ℓ (Exchange) |
FUEL SYSTEM
| Model | Single Disk & Double Disk |
| Type | PGM-FI (Programmed Fuel Injection) |
| Fuel Tank Capacity | 4ℓ |
ELECTRICAL SYSTEM
| Model | Single Disk & Double Disk |
| Starter | Electric Auto / Manual Start |
| Battery Capacity | 3 A.h |
| ACG Output | 12 V |
DRIVETRAIN
| Model | Single Disk & Double Disk |
| Clutch Type | Automatic Centrifugal Clutch |
| Transmission Type | Manual / 4 Speed – Constant Mesh |
CHASIS
| Model | Single Disk | Double Disk |
| Frame Type | Back Bone | Back Bone |
| Dimensions (L x W x H) | 1,894 mm X 707 mm X 1,124 mm | 1,894 mm X 707 mm X 1,124 mm |
| Wheelbase | 1,237 mm | 1,237 mm |
| Seat Height | 767 mm | 767 mm |
| Ground Clearance | 142 mm | 142 mm |
| Curb Weight | 103 kg | 105 kg |
SUSPENSION, WHEELS & BRAKE
| Model | View | Single Disk | Double Disk |
| Suspension Type | Front Rear |
Telescopic Twin | Telescopic Twin |
| Rim Size | Front Rear | 17 M/C x MT1.85 17 M/C x MT1.85 | 17 M/C x MT1.85 17 M/C x MT1.85 |
| Tyres | Front Rear | 70/90-17M/C 38P (Tubeless) 80/90-17M/C 50P (Tubeless) | 70/90-17M/C 38P (Tubeless) 80/90-17M/C 50P (Tubeless) |
| Brakes | Front Rear | Hydraulic Disk Mechanical Leading Trailing | Hydraulic Disk Hydraulic Disk |
