390 ADVENTURE
COLORS AVAILABLE
390 ADVENTURE
OVERVIEW

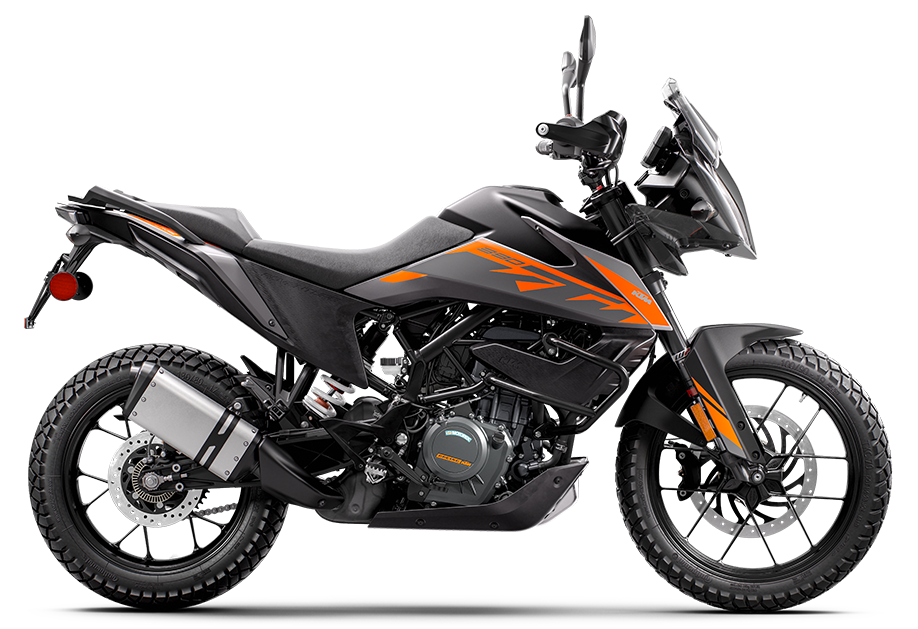

The KTM 390 ADVENTURE takes exploration further by merging all-road versatility and proven reliability with real-world performance. Built around a compact 373 cc single-cylinder powerplant with a capable, lightweight chassis and class-leading electronics, the KTM 390 ADVENTURE encourages you to find new frontiers with the unmatched capability and excitement you’d expected from a KTM ADVENTURE machine. Featuring an updated design for 2022, the KTM 390 ADVENTURE is now also visually aligned with the Dakar winning KTM FACTORY RALLY machines.
ENGINE
| ENGINE TYPE | Single -cylinder, 4-stroke, 4V/DOHC |
| DISPLACEMENT | 373 cc |
| BORE X STROKE | 89 mm x 60 mm |
| POWER OUTPUT | 32 kW (44 hp) @ 9,000 rpm |
| MAX. TORQUE | 37 Nm @ 7,000 rpm |
| FUEL CONSUMPTION | 3.37 litres / 100 km |
CHASSIS
| FRAME | Steel trellis frame, powder coated |
| SUBFRAME | Bolt on steel trellis frame, powder coated |
| HANDLEBAR | Aluminium, tapered, 26 / 22 mm |
| FRONT SUSPENSION | WP APEX 43 mm Upside Down |
| REAR SUSPENSION | WP APEX – Monoshock |
| SUSPENSION TRAVEL FRONT/REAR | 170 mm / 177 mm |
| WHEELBASE | 1,430 mm ± 15 mm |
| WHEELS FRONT/REAR | Cast aluminium wheels 2.50 x 19”; 130 / 80-17” |
| FRONT BRAKE | 4-piston, radially mounted caliper, brake disc Ø 320 mm |
| REAR BRAKE | Single piston, floating caliper, brake disc Ø 230 mm |
